Project Kunming Steel Pu'er Cement Mine 1.9km Curved Belt Conveyor
2021-11-05 04:03 Website editor
The technical characteristics of the project Kunming Steel Pu'er Cement Mine 1.9km Curved Belt Conveyor. are:
1、There is a horizontal turning section, the turning angle and radius are 9° and R2000m. The horizontal turning section contains a convex arc and a concave arc.
2、The upper belt surface adopts a 35° groove-shaped roller group with adjustable inner lifting angle, and the lower roller group adopts a 15°V-shaped roller group with adjustable inner lifting angle to realize horizontal turning; the distance between the upper rollers is 1.5~2.5m, and the lower supports Roller spacing 3~5m.
3、The use of variable frequency speed regulation drive with feeder unit accomplished to recover energy from material’s potential energy.
4、Adopt the structure of the upper and lower roller set inside the truss.
1、There is a horizontal turning section, the turning angle and radius are 9° and R2000m. The horizontal turning section contains a convex arc and a concave arc.
2、The upper belt surface adopts a 35° groove-shaped roller group with adjustable inner lifting angle, and the lower roller group adopts a 15°V-shaped roller group with adjustable inner lifting angle to realize horizontal turning; the distance between the upper rollers is 1.5~2.5m, and the lower supports Roller spacing 3~5m.
3、The use of variable frequency speed regulation drive with feeder unit accomplished to recover energy from material’s potential energy.
4、Adopt the structure of the upper and lower roller set inside the truss.

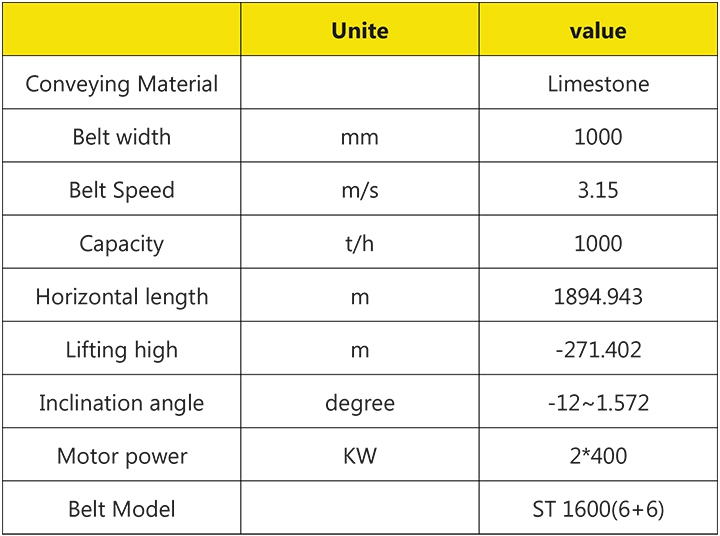

Technical Data Chart

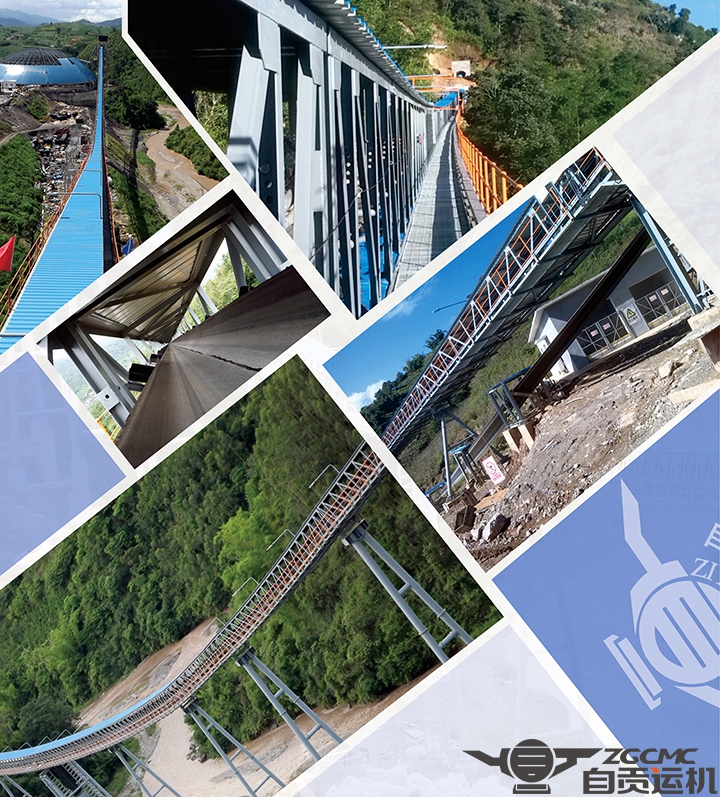

Live picture
