Project 3.4km long-distance belt conveyor in the mine of Chinalco Pingguo Aluminum Branch
2021-11-05 04:28 Website editor
The technical characteristics of the project 3.4km long-distance belt conveyor in the mine of Chinalco Pingguo Aluminum Branch are as follows:
1、There is a horizontal turning section, the turning angle and radius are 29° and R1840m. The horizontal turning section contains a convex arc and a concave arc. Limited by the highway elevation, the radius of the concave arc is very small, making it very difficult to turn horizontally.
2、The upper belt surface adopts a 35° groove-shaped roller group with adjustable inner lifting angle, and the lower roller group adopts a 15°V-shaped roller group with adjustable inner lifting angle to realize horizontal turning; the distance between the upper rollers is 1.5~2m, and the lower supports Roller spacing 3~4m.
3、The use of variable frequency speed regulation drive with feeder unit accomplished to recover energy from material’s potential energy.
4、Adopt the structure of the upper and lower roller set inside the truss.
1、There is a horizontal turning section, the turning angle and radius are 29° and R1840m. The horizontal turning section contains a convex arc and a concave arc. Limited by the highway elevation, the radius of the concave arc is very small, making it very difficult to turn horizontally.
2、The upper belt surface adopts a 35° groove-shaped roller group with adjustable inner lifting angle, and the lower roller group adopts a 15°V-shaped roller group with adjustable inner lifting angle to realize horizontal turning; the distance between the upper rollers is 1.5~2m, and the lower supports Roller spacing 3~4m.
3、The use of variable frequency speed regulation drive with feeder unit accomplished to recover energy from material’s potential energy.
4、Adopt the structure of the upper and lower roller set inside the truss.

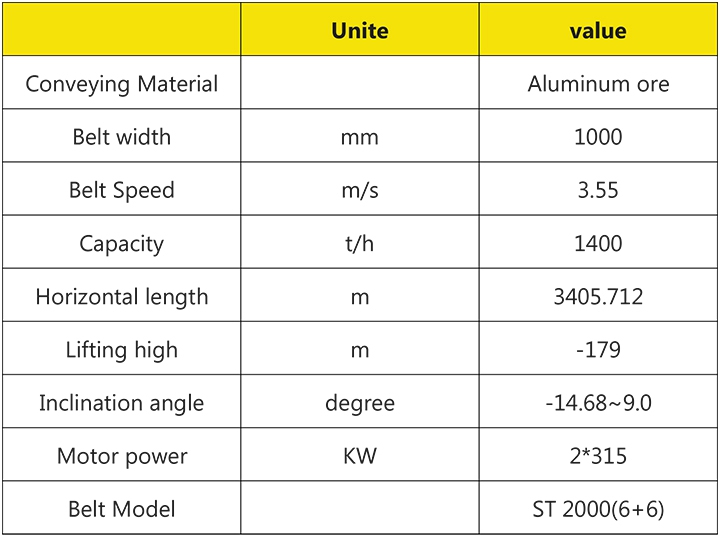

Technical Data Chart

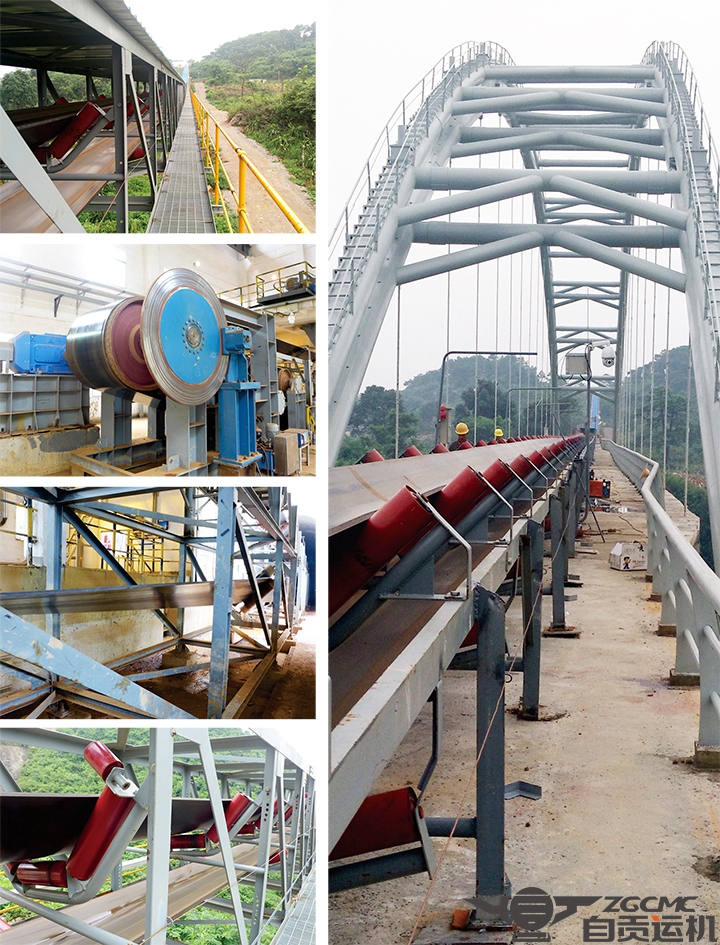

Live picture
