Project China Resources Luoding Cement 2.4km long-distance curved belt conveyor

       China Resources Luoding Cement’s 2.4km long-distance curved belt conveyor is arranged in a V-shape on the facade. The conveyor not only has a large inertia difference between the load-bearing section and the return section, but also has a large inertia difference between the head and tail of the conveyor. The drive device is designed Flywheel to balance the influence of inertial force when the conveyor starts and stops.

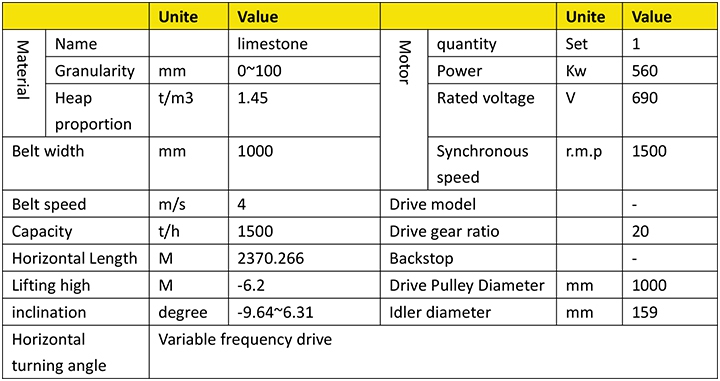

Technical Data Charts

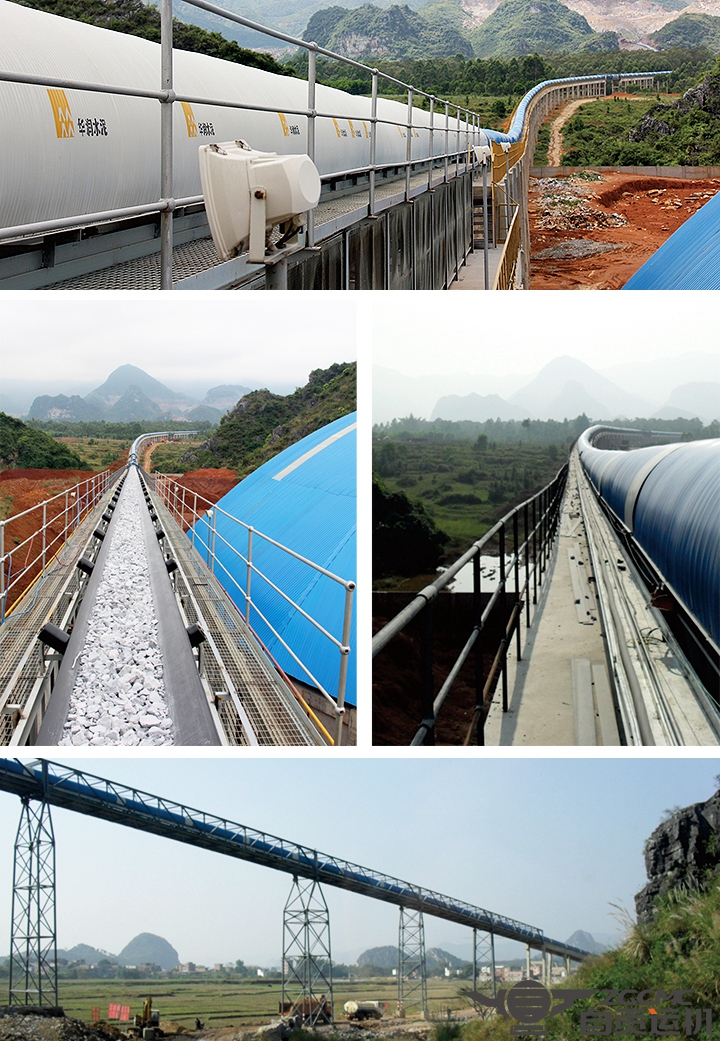

Live picture
