Project China Resources Lianjiang Cement Mine 4.6km long-distance curved belt conveyor
2021-11-05 03:22 Website editor
Technical characteristics of project China Resources Lianjiang Cement Mine 4.6km long-distance curved belt conveyor：
1、There are three horizontal turning sections, the turning angle and radius are 3° (R2000m), 5° (R1500m) and 15° (R1200m) respectively. The horizontal turning sections do not include convex arcs and concave arcs.
2、The upper belt surface adopts the sinking 35° groove-shaped idler group with adjustable inner lifting angle, without self-aligning idler group; the lower roller group adopts 15°V-shaped roller group, and also without self-aligning roller group ；The distance between the upper idlers is 1.5~3m, and the distance between the lower idlers is 3~6m.
3、Adopting head double pulley and three frequency conversion speed regulation drive to realize controllable soft start and soft stop.
1、There are three horizontal turning sections, the turning angle and radius are 3° (R2000m), 5° (R1500m) and 15° (R1200m) respectively. The horizontal turning sections do not include convex arcs and concave arcs.
2、The upper belt surface adopts the sinking 35° groove-shaped idler group with adjustable inner lifting angle, without self-aligning idler group; the lower roller group adopts 15°V-shaped roller group, and also without self-aligning roller group ；The distance between the upper idlers is 1.5~3m, and the distance between the lower idlers is 3~6m.
3、Adopting head double pulley and three frequency conversion speed regulation drive to realize controllable soft start and soft stop.

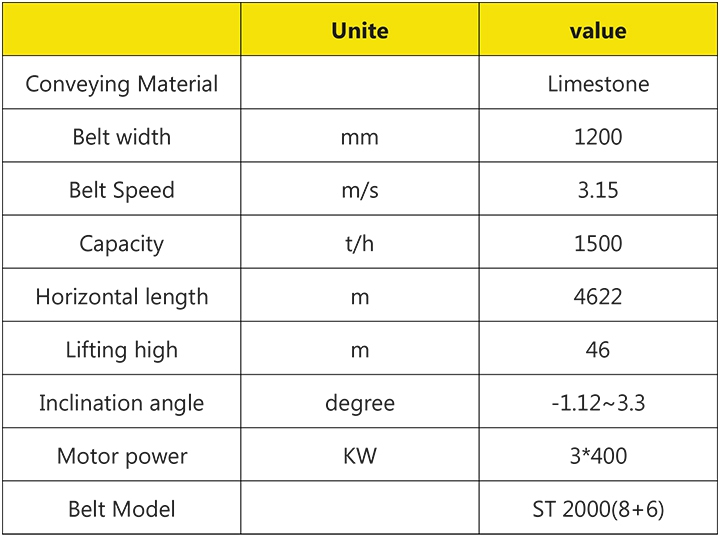

Technical Data Chart

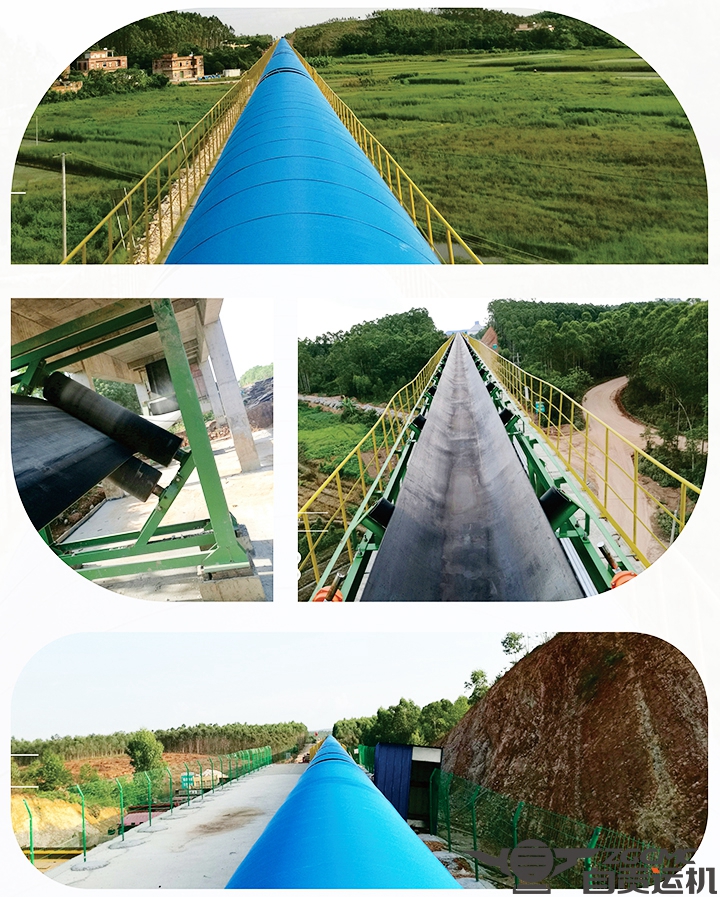

Live picture
