Project East Hope Aluminum Co., Ltd. Coal Conveying 10.7km Long-distance Curved Conveyor
2021-11-05 03:11 Website editor
Characteristic of Project East Hope Aluminum Co., Ltd. Coal Conveying 10.7km Long-distance Curved Conveyor：
1、A total of six horizontal turns along the line.
2、Adopt large idler diameter 178mm, large idler spacing, upper belt surface 3m, lower belt surface 6m.
3、Using 10KV high voltage frequency conversion drive, high transmission efficiency, stable start and stop.
1、A total of six horizontal turns along the line.
2、Adopt large idler diameter 178mm, large idler spacing, upper belt surface 3m, lower belt surface 6m.
3、Using 10KV high voltage frequency conversion drive, high transmission efficiency, stable start and stop.

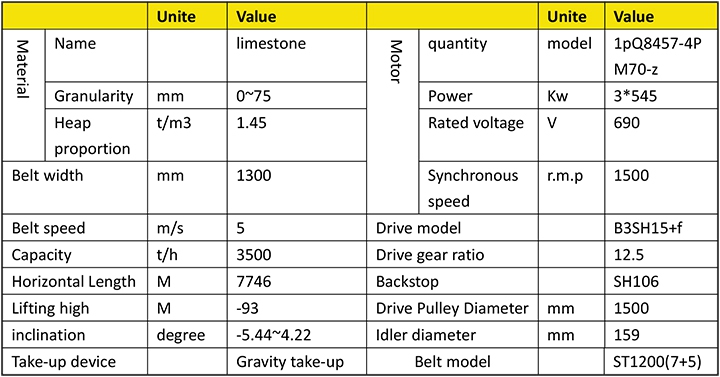

Technical Data Charts

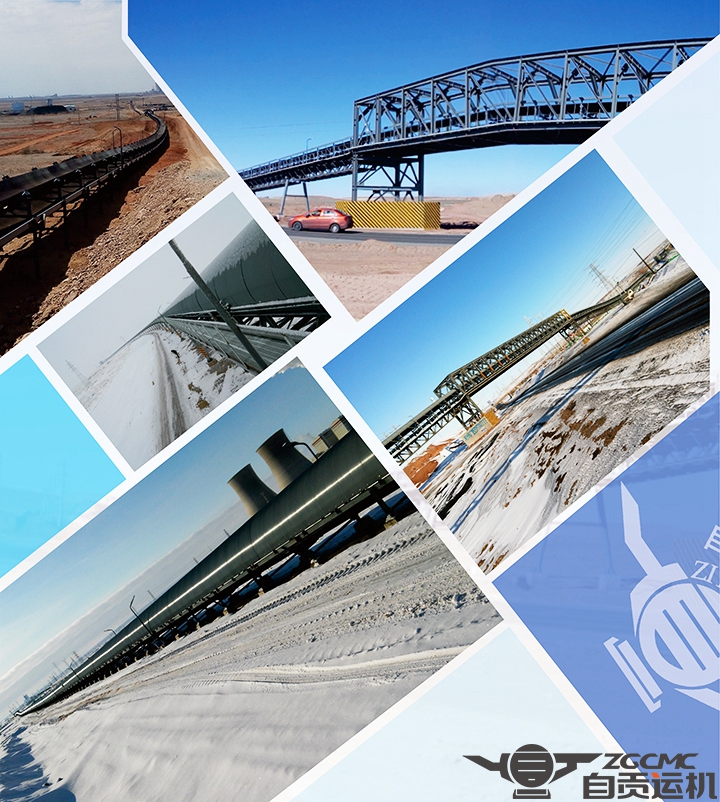

Live picture
