Project Dazhou Lisen Cement 8.3km long-distance curved belt conveyor
2021-11-05 03:06 Website editor
Technical characteristics of Dazhou Leeson Cement 8.3km long-distance curved belt conveyor：
1、The transportation terrain is complex, spanning 3 large mountains, 28 elevation turns, 5 horizontal turns, and some of the horizontal turns coincide with the concave arc of the elevation.
2、Conveyor drive is in a critical power generation state. With the change of conveying volume, the drive power is often switched between positive and negative conditions.
1、The transportation terrain is complex, spanning 3 large mountains, 28 elevation turns, 5 horizontal turns, and some of the horizontal turns coincide with the concave arc of the elevation.
2、Conveyor drive is in a critical power generation state. With the change of conveying volume, the drive power is often switched between positive and negative conditions.

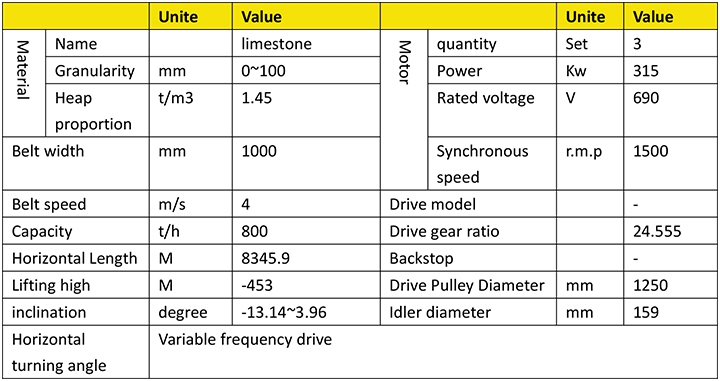

Technical Data Charts

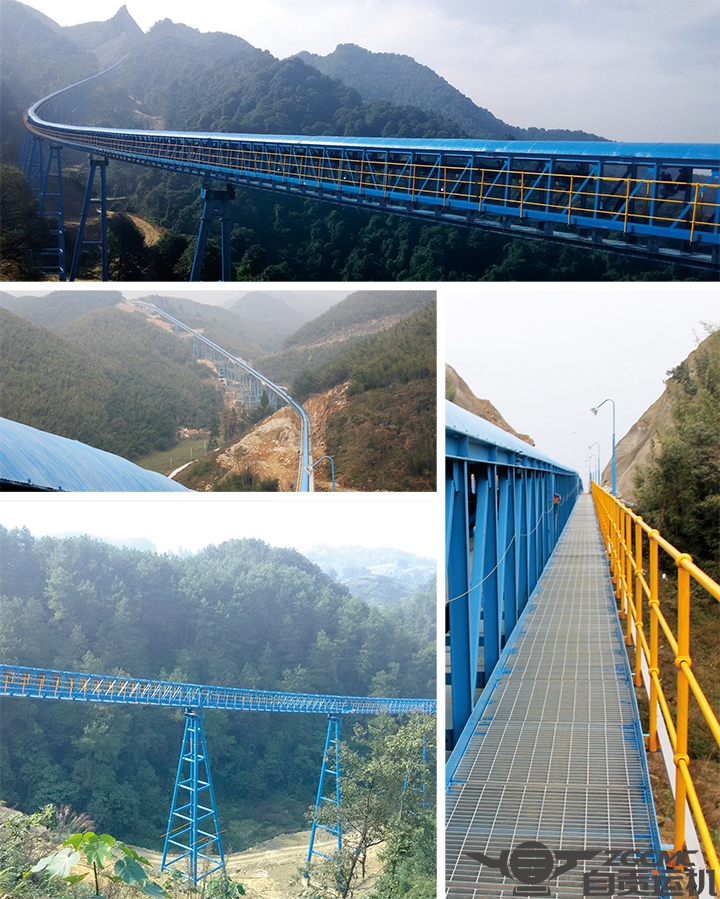

Live picture
