Project Shanxi Yangquan Yankan Coal Industry
2021-11-03 03:24 Website editor
Shanxi Yangquan Yankan Coal Mine Pipe Belt Conveyor was built and put into use in 2014. Technical characteristics such as complicated working conditions, long conveying distance, large driving power, high belt strength, low safety factor of the belt under dangerous conditions, complex terrain, many turns, large vertical undulations, and operation.
1、Conveying distance up to 8300m.
2、Single machine power up to 4×1250kw.
3、It is an off-road pipe belt conveyor with complicated terrain.
4、Solved the technical problem of low belt safety factor of long-distance cross-country pipe belt conveyor in dangerous working conditions.
5、Using 10kv high voltage variable frequency multi-point drive technology.
6、Application of integrated safety protection device technology with calling function.
7、Adopting highly automated and intelligent control technology.
1、Conveying distance up to 8300m.
2、Single machine power up to 4×1250kw.
3、It is an off-road pipe belt conveyor with complicated terrain.
4、Solved the technical problem of low belt safety factor of long-distance cross-country pipe belt conveyor in dangerous working conditions.
5、Using 10kv high voltage variable frequency multi-point drive technology.
6、Application of integrated safety protection device technology with calling function.
7、Adopting highly automated and intelligent control technology.

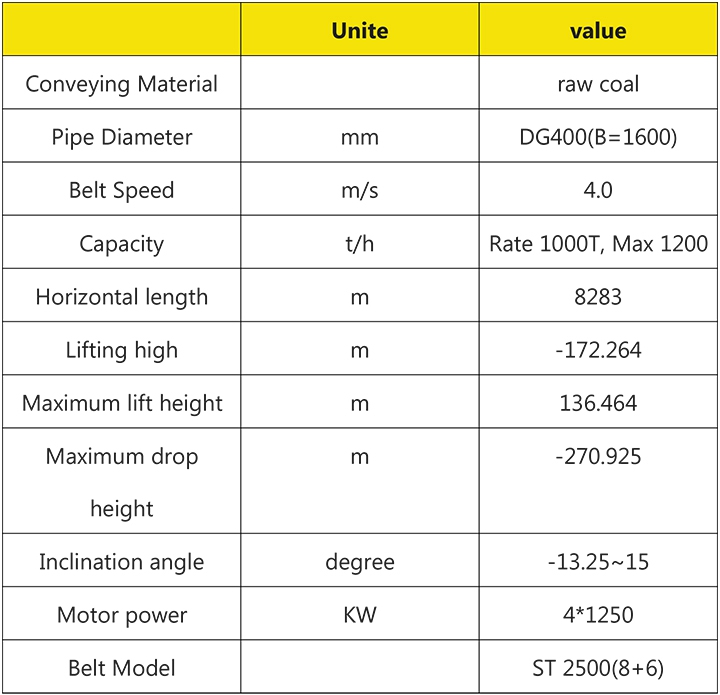

Technical Data Chart

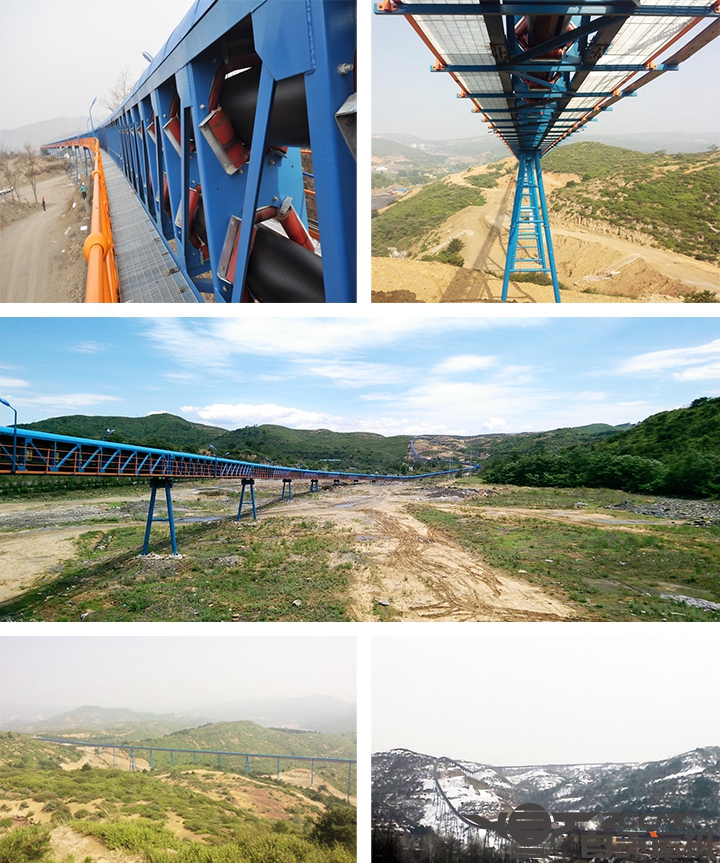

Live picture
