Project Shanxi Jinmei Project

     1、here are 14 horizontal turns, the lowest turning radius is 360m, the maximum turning radius is 400m, the maximum turning angle is 44°, 20 elevation arcs, the minimum radius is 400m, and the maximum radius is 600m.

    2、The pipe belt machine adopts a low friction resistance flame-retardant conveyor belt, which reduces the energy consumption of the pipe belt machine.

     3、The pipe belt machine adopts a new structure and adjustable window idler group to prevent the conveyor belt from twisting and jamming, which is convenient for the maintenance and deviation adjustment of the pipe belt conveyor.

    4、The pipe belt machine crosses Jinyang Expressway and S332 Provincial Road, and uses a 70m large-span trestle bridge across the road section.

     5、Pipe belt machine passes through two coal goaf. The corridor settlement intelligent monitoring system is adopted in the goaf area to monitor the settlement and displacement of the tunnel conveyor corridor in the goaf area in real time.

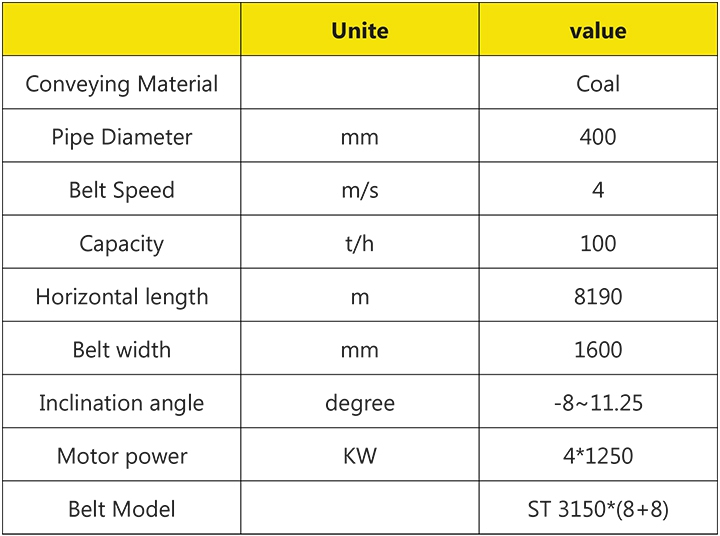

Technical Data Chart

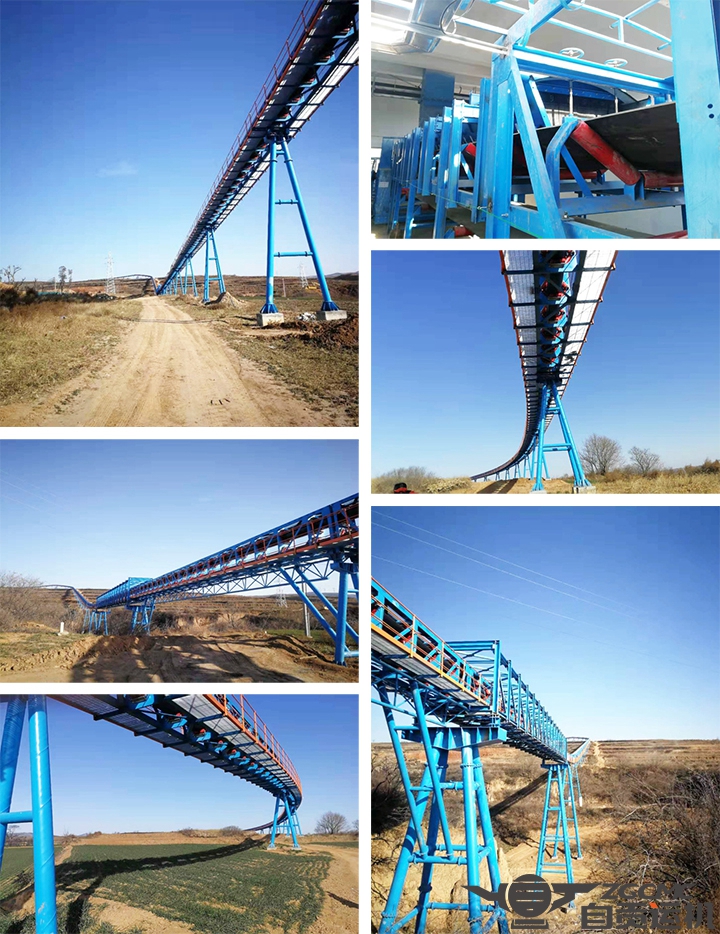

Live picture
