Rizhao Lanshan Port Project

       The ore conveying pipe belt conveyor system in Rizhao Lanshan Port Area was completed and put into operation in 2013. The system is composed of three pipe belt machines C2, C3 and C4, which have the characteristics of large pipe diameter, high belt strength, large transportation volume, and high belt speed.
       1、The designed capacity reaches 5500th, but the actual operating maximum capacity exceeds 7000t/h.
       2、Belt speed up to 5.0m/s.
       3、Single machine installed power up to 4×1150kw.

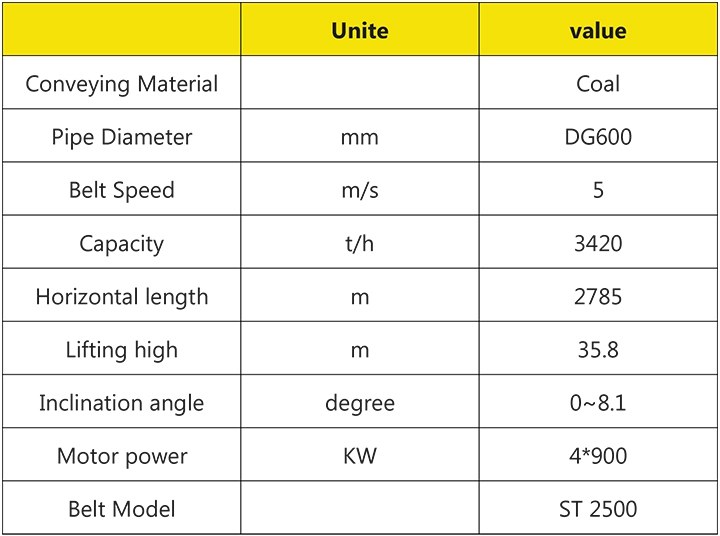

Technical Data Chart

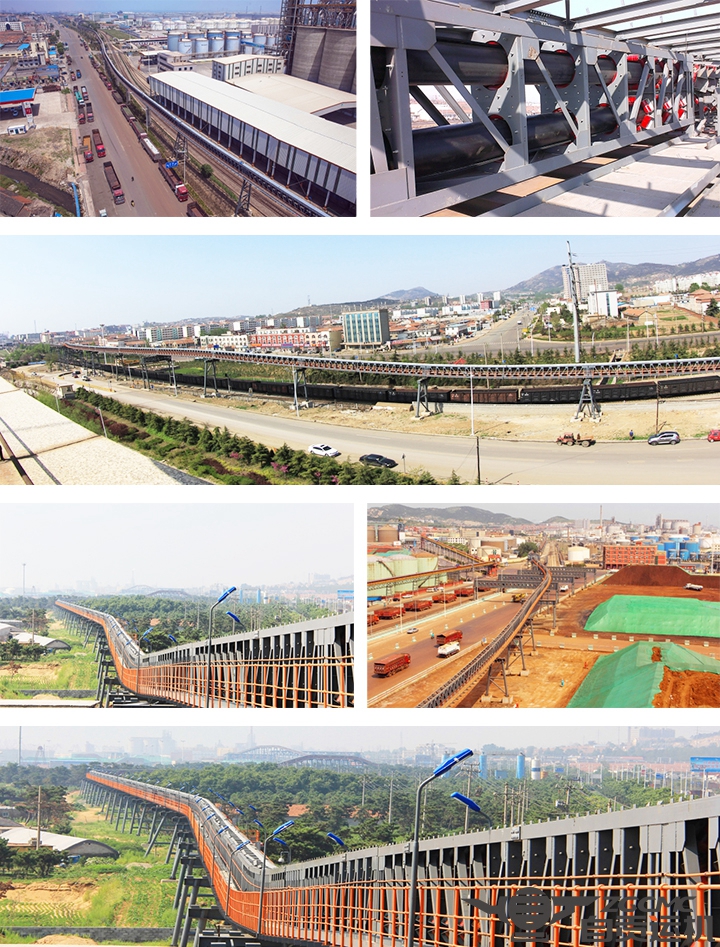

Live picture
