Guizhou Sinochem Kailin Project

       Characteristics of phosphogypsum conveyor belt conveyor for Guizhou Sinochem Kailin Fertilizer Co., Ltd.
       1、The conveying material is phosphogypsum, the water content is 20~30%, and the material is highly corrosive.

       2、The horizontal length of the pipe belt conveyor is 6176 meters, there are 10 horizontal turns, the maximum turning angle reaches 65°, and the horizontal turning radius is 380 meters.

       3、The total prompt height on the facade is 103 meters, the facade contains a total of 32 concave-convex arc turns, and the turning radius is 300-500 meters.

       4、This project is a long distance phosphogypsum belt conveyor with most complex structure.

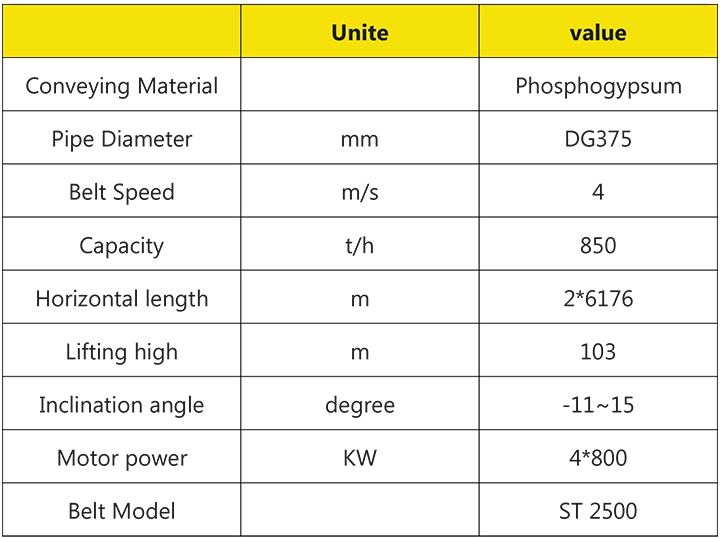

Technical Data Chart

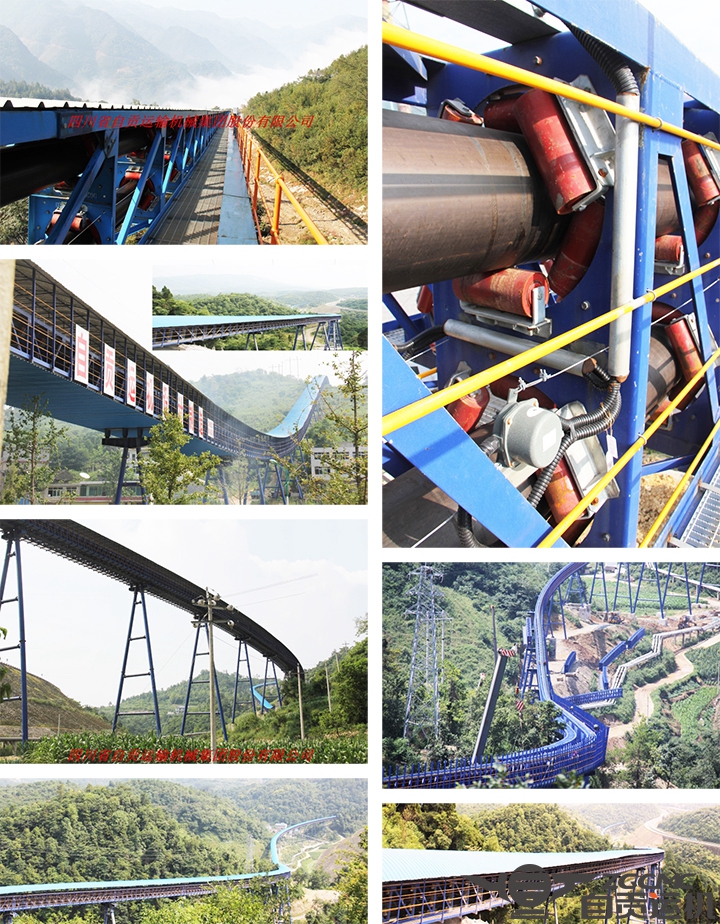

Live picture
